合金钢材料，镀镍,S型结构，胶封，拉向或压向承载。
防护等级IP67
适用于吊钩秤、机改秤、料斗秤等各类电子称重设备。
推荐选择型号：
| xxkg | C3/A5S/B10S | H3G-xx-xxkg-6B |
| xxt | C3/A5S/B10S | H3G-xx-xxt-6B |
| xxlb | A5S/B10S | H3G-xx-xx-6YB |
| xxklb | A5S/B10S | H3G-xx-xxk-6YB |
| 20klb | C3 | H3G-C3-20k-6YB |
| 50kg-250kg通过OIML C3级认证。 50kg-7.5t(50lb-15klb)通过NTEP A5S/B10S级认证。 | ||
技术指标
| 额定载荷 | t | 0.05/0.1/0.2/0.25/0.3/0.5/1/2.5/5/7.5 | ||
| lb | 250/500/750/1K/1.5K/2K/2.5K/3K/5K/7.5K/10K/15K/20K | |||
| 精度 | C3 | A5S | B10S | |
| 最大检定分度数 | n max | 3000 | III5000单只 | III10000单只 |
| 最小检定分度值 | v min | Emax/10000 | Emax/15000 | Emax/10000 |
| 综合误差 | (%FS) | ≤±0.020 | ≤±0.018 | ≤±0.035 |
| 蠕变 | (%FS/30min) | ≤±0.016 | ≤±0.012 | ≤±0.030 |
| 温度对输出灵敏度的影响 | (%FS/10℃) | ≤±0.011 | ≤±0.009 | ≤±0.030 |
| 温度对零点输出的影响 | (%FS/10℃) | ≤±0.015 | ≤±0.010 | ≤±0.030 |
| 输出灵敏度 | (mv/v) | 3.0±0.008 | ||
| 输入阻抗 | (Ω) | 430±60 | ||
| 输出阻抗 | (Ω) | 351±2 | ||
| 绝缘阻抗 | (MΩ) | ≥5000(50VDC) | ||
| 零点输出 | (%FS) | ≤±1.0 | ||
| 温度补偿范围 | (℃) | -10～+40 | ||
| 允许使用温度范围 | (℃) | -35～+70 | ||
| 推荐激励电压 | (V) | 5～12(DC) | ||
| 最大激励电压 | (V) | 18(DC) | ||
| 安全过载范围 | (%FS) | 150 | ||
| 极限过载范围 | (%FS) | 300 | ||
| ATEX等级(可选) | II1G Ex ia 1C T4 II1D Ex ia D20 T73℃ II3G Ex nL IIC T4 | |||

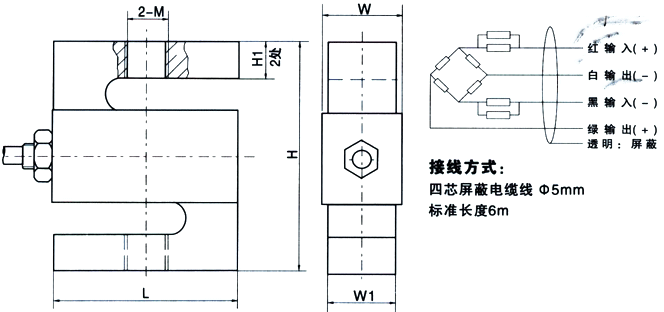

外形尺寸mm(inch)
| 量程 | L | H | W | W1 | M | H1 |
| 50㎏,100㎏ | 50.8(2.0) | 63.5(2.5) | 12.7(0.5) | 16.07(0.63) | M8 | 10.16(0.4) |
| 0.05klb～0.3klb | 1/4-28UNF | |||||
| 250㎏～500㎏ | 50.8(2.0) | 63.5(2.5) | 19.05(0.75) | 22.43(0.88) | M12 | |
| 0.5klb～1.5klb | 1/2-20UNF | |||||
| 1t | 50.8(2.0) | 63.5(2.5) | 25.4(1.0) | 28.78(1.13) | M12 | |
| 2,2.5Klb | 1/2-20UNF | |||||
| 2.5t | 76.2(3.0) | 101.6(4.0) | 25.4(1.0) | 28.78(1.13) | M20×1.5 | 15.2(0.6) |
| 3Klb | 1/2-20UNF | |||||
| 5t | 76.2(3.0) | 101.6(4.0) | 25.4(1.0) | 28.78(1.13) | M20×1.5 | 20(0.79) |
| 5klb,10Klb | 3/4-16UNF | 15.24(0.6) | ||||
| 7.5t | 101.6(4.0) | 139.7(5.5) | 31.75(1.25) | 35.13(1.38) | M24×2 | 30(1.18) |
| 30(1.18) | 1-14UNS |
