不锈钢材料（B9C）;合金钢材料，镀镍(H9C);双剪梁结构，胶密，压向承载。
防护等级IP67
适用于电子汽车衡、轨道衡、料斗秤及各类电子称重设备。
推荐选择型号：
| xxklb | A5M/B10M | B9C-xx-xxk-9B |
| 5klb-250klb通过NTEP A5M/B10M级认证 | ||
| xxklb | A5M/B10M | H9C-xx-xxk-9B |
| 5klb-250klb通过德国PTB C3级认证 5klb-250klb通过德国PTB C4级认证 5klb-250klb通过NTEP A5M/B10M级认证 | ||
技术指标
| 额定载荷 | Klb | 5/10/15/20/30/40/50/60/75/90/100/150/200/250 | |||
| 精度 | C3 | C3 | A5M | B10M | |
| 最大检定分度数 | n max | 3000 | 4000 | III 5000多只 | III 10000多只 |
| 最小检定分度值 | v min | Emax/10000 | Emax/14000 | Emax/15000 | Emax/10000 |
| 综合误差 | (%FS) | ≤±0.020 | ≤±0.018 | ≤±0.026 | ≤±0.050 |
| 蠕变 | (%FS/30min) | ≤±0.016 | ≤±0.012 | ≤±0.017 | ≤±0.040 |
| 温度对输出灵敏度的影响 | (%FS/10℃) | ≤±0.011 | ≤±0.009 | ≤±0.013 | ≤±0.040 |
| 温度对零点输出的影响 | (%FS/10℃) | ≤±0.015 | ≤±0.010 | ≤±0.014 | ≤±0.020 |
| 输出灵敏度 | (mv/v) | 3.0±0.008 | |||
| 输入阻抗 | (Ω) | 700±7 | |||
| 输出阻抗 | (Ω) | 703±4 | |||
| 绝缘阻抗 | (MΩ) | ≥5000(50VDC) | |||
| 零点输出 | (%FS) | ≤±1.0 | |||
| 温度补偿范围 | (℃) | -10～+40 | |||
| 允许使用温度范围 | (℃) | -35～+70 | |||
| 推荐激励电压 | (V) | 5～12(DC) | |||
| 最大激励电压 | (V) | 18(DC) | |||
| 安全过载范围 | (%FS) | 150 | |||
| 极限过载范围 | (%FS) | 300 | |||
| ATEX等级（可选） | II 1G Ex ia II 1C T4 II 1D Ex iaD20 T73℃ II 3G Ex nL II C T4 | ||||
| 注：B9C无OIML/NTEP认证. | |||||

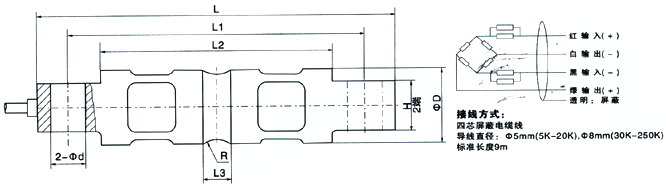

外形尺寸mm(inch)
| 量程(Klb) | L | L1 | L2 | L3 | D | W | d | R |
| 5～10 | 206.2 (8.12) | 174.6 (6.88) | 133.1 (5.24) | 15.7 (0.62) | φ43.2 (1.7) | 28.4 (1.12) | φ16.7 (0.66) | R12.7 (0.5) |
| 20 | 206.2 (8.12) | 174.6 (6.88) | 133.1 (5.24) | 21.3 (0.84) | φ49.5 (1.95) | 28.4 (1.12) | φ16.7 (0.66) | R12.7 (0.5) |
| 30～75 | 260.4 (10.25) | 215.9 (8.5) | 165.1 (6.5) | 25.4 (1.0) | φ76.2 (3.0) | 60.2 (2.37) | φ26.9 (1.06) | R25.4 (1.0) |
| 100 | 285.8 (11.25) | 241.3 (9.5) | 190.2 (7.49) | 31.0 (1.22) | φ88.9 (3.5) | 63.5 (2.5) | φ26.9 (1.06) | R38.1 (1.5) |
| 150 | 285.8 (11.25) | 241.3 (9.5) | 190.2 (7.49) | 31.0 (1.22) | φ99.1 (3.90) | 71.1 (2.80) | φ26.9 (1.06) | R38.1 (1.5) |
| 200～250 | 408.9 (16.1) | 330.3 (13.0) | 254.0 (10.0) | 31.7 (1.25) | φ136.6 (5.38) | 116.8 (4.6) | φ39.6 (1.56) | R50.8 (2.0) |
