合金钢材料，镀镍,S型结构，胶封，拉向或压向承载。
防护等级IP67
适用于吊钩秤、机改秤、料斗秤等各类电子称重设备。
推荐选择型号：
| xxkg | C3/A5S/B10S | H3F-xx-xxkg-6T |
| xxt | C3/A5S/B10S | H3F-xx-xxt-6T |
| xxlb | A5S/B10S | H3F-xx-xx-6YT |
| xxklb | A5S/B10S | H3F-xx-xxk-6YT |
| 20klb | C3 | H3F-C3-20k-6YT |
| 50kg-5t(200lb-15klb)通过NTEP A5S/B10S级认证。 | ||
推荐选择型号：
| 额定载荷 | t | 0.05/0.1/0.25/0.5/0.75/1/1.5/2/2.5/5 | ||
| lb | 200/250/500/750/1K/1.5K/2K/2.5K/3K/5K/7.5K/10K/15K/20K | |||
| 精度 | C3 | A5S | B10S | |
| 最大检定分度数 | n max | 3000 | III5000单只 | III10000单只 |
| 最小检定分度值 | v min | Emax/10000 | Emax/15000 | Emax/10000 |
| 综合误差 | (%FS) | ≤±0.020 | ≤±0.018 | ≤±0.035 |
| 蠕变 | (%FS/30min) | ≤±0.016 | ≤±0.012 | ≤±0.030 |
| 温度对输出灵敏度的影响 | (%FS/10℃) | ≤±0.011 | ≤±0.009 | ≤±0.030 |
| 温度对零点输出的影响 | (%FS/10℃) | ≤±0.015 | ≤±0.010 | ≤±0.030 |
| 输出灵敏度 | (mv/v) | 3.0±0.008 | ||
| 输入阻抗 | (Ω) | 350±3.5 | ||
| 输出阻抗 | (Ω) | 351±2 | ||
| 绝缘阻抗 | (MΩ) | ≥5000(50VDC) | ||
| 零点输出 | (%FS) | ≤±1.0 | ||
| 温度补偿范围 | (℃) | -10～+40 | ||
| 允许使用温度范围 | (℃) | -35～+70 | ||
| 推荐激励电压 | (V) | 5～12(DC) | ||
| 最大激励电压 | (V) | 18(DC) | ||
| 安全过载范围 | (%FS) | 150 | ||
| 极限过载范围 | (%FS) | 300 | ||
| ATEX等级(可选) | II1G Ex ia 1C T4 | II1D Ex ia D20 T73℃ | II3G Ex nL IIC T4 | |

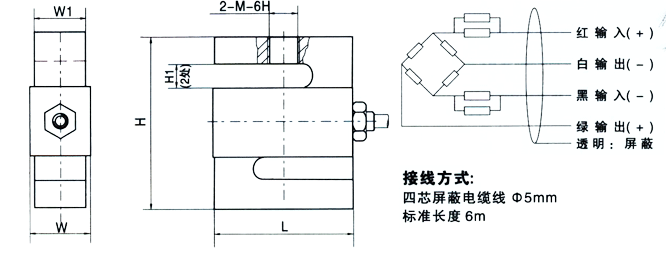

外形尺寸mm(inch)
| 量程 | H | L | W1 | W | H1 | M |
| 50kg,100kg | 76.2(3.0) | 50.8(2.0) | 19(0.75) | 19(0.75) | 9(0.35) | M10×1.5 |
| 250kg-750kg | 76.2(3.0) | 50.8(2.0) | 19(0.75) | 22.4(0.88) | 9(0.35) | M12×1.75 |
| 1.0t,1.5t | 76.2(3.0) | 50.8(2.0) | 25.4(1.0) | 28.8(1.13) | 9(0.35) | M12×1.75 |
| 2.0t-5.0 | 108(4.25) | 76.2(3.0) | 25.4(1.0) | 28.8(1.13) | 9(0.35) | M18×1.5 |
| 250lb | 76.2(3.0) | 50.8(2.0) | 12.7(0.5) | 16.1(0.63) | 9(0.35) | 3/8-24UNF |
| 200lb-300lb | 76.2(3.0) | 50.8(2.0) | 19.0(0.75) | 22.4(0.88) | 9(0.35) | 3/8-24UNF |
| 500lb-1.5klb | 76.2(3.0) | 50.8(2.0) | 19.0(0.75) | 22.4(0.88) | 9(0.35) | 1/2-20UNF |
| 2klb-3klb | 76.2(3.0) | 50.8(2.0) | 25.4(1.0) | 28.6(1.13) | 9(0.35) | 1/2-20UNF |
| 5klb-10klb | 108(4.25) | 76.2(3.0) | 25.4(1.0) | 28.6(1.13) | 9(0.35) | 3/4-16UNF |
| 15Klb | 140(5.51) | 100(3.94) | 31.8(1.25) | 35(1.38) | 16.5(0.65) | 1-14UNS |
| 20Klb | 177.8(7.0) | 125.5(4.94) | 49.3(1.94) | 54(2.13) | 21.5(0.85) | 5/4-12UNF |
