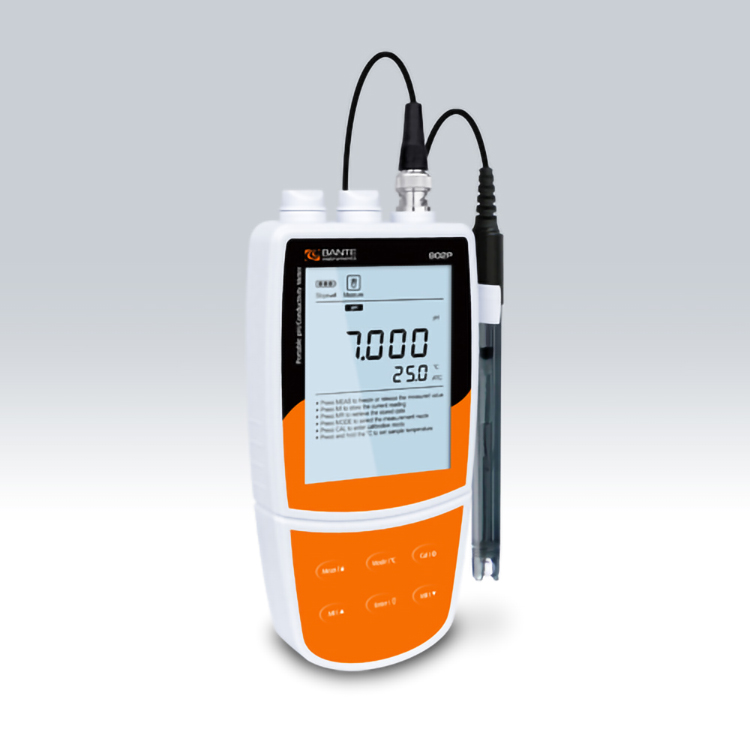

Multiparameter portable pH/conductivity meter contains 6 measurement modes, the meter is suitable for measuring the pH, ORP, conductivity, TDS, salinity and resistivity.
pH Mode:
• Multiparameter portable pH/conductivity meter is equipped with a backlit LCD display.
• 1 to 5 points calibration with automatic recognition for USA, NIST and DIN buffers.
• Automatic electrode diagnosis shows the pH slope and offset.
ORP Mode:
• 1 point offset calibration allows adjusting the displayed value to a known standard.
• Relative and absolute millivolt modes ensure the reliable ORP measurements.
Conductivity/TDS/Salinity/Resistivity Modes:
• 1 to 5 points calibration with automatic recognition for conductivity standards.
• Selectable cell constant (K=0.1/1/10), reference temperature (20/25°C), TDS factor, linear
and pure water compensations, seawater and practical salinity measurement modes.
Other Features:
• Automatic temperature compensation ensures accurate readings over the entire range.
• Auto-Read function senses and locks the measurement endpoint.
• Calibration due alarm prompts user to calibrate the meter regularly.
• Auto-Power Off effectively conserves battery life.
• Setup menu allows setting the number of calibration points, stability criteria, temperature
unit, date and time, etc.
• Reset function automatically resumes all settings back to the factory defaults.
• Expanded memory stores or recalls up to 500 data sets.
• USB communication interface is easy to transfer data to PC.
• Multi-mode power scheme (batteries, power adapter and USB port) ensures that using the
meter smoothly.
Specifications
| Model | Bante902P |
| pH | |
| Range | -2.000 to 20.000 pH |
| Resolution | 0.001 / 0.01 / 0.1 pH, selectable |
| Accuracy | ±0.002 pH |
| Calibration Points | 1 to 5 points |
| pH Buffer Options | USA / NIST / DIN / 2 custom buffers |
| ORP | |
| Range | -1999.9 to 1999.9 mV |
| Resolution | 0.1 / 1 mV, selectable |
| Accuracy | ±0.2 mV |
| Calibration Points | 1 point |
| Measurement Modes | Relative / Absolute mV |
| Conductivity | |
| Range | 0 to 20.00, 200.0, 2000 µS/cm, 20.00, 200.0 mS/cm |
| Resolution | 0.001, 0.01, 0.1, 1, automatic |
| Accuracy | ±0.5% F.S. |
| Calibration Points | 1 to 5 points |
| Calibration Solutions | 10 µS / 84 µS / 1413 µS / 12.88 mS / 111.8 mS |
| Temperature Coefficient | 0.0 to 10.0%/°C |
| Pure Water Compensation | Yes |
| Reference Temperature | 20 / 25°C |
| Cell Constant | K=0.1 / 1 / 10 / Custom |
| TDS | |
| Range | 0 to 10.00, 100.0, 1000 ppm, 10.00, 200.0 ppt |
| Resolution | 0.01, 0.1, 1, automatic |
| Accuracy | ±1% F.S. |
| TDS Conversion Factor | 0.1 to 1.0 (default 0.5) |
| Salinity | |
| Range | 0.00 to 80.00 ppt / 0.00 to 42.00 psu |
| Resolution | 0.01 |
| Accuracy | ±1% F.S. |
| Resistivity | |
| Range | 0.00 to 20.00 MΩ |
| Resolution | 0.01 |
| Accuracy | ±1% F.S. |
| Temperature | |
| Range | 0 to 105°C / 32 to 221°F |
| Resolution | 0.1°C/°F |
| Accuracy | ±0.5°C / ±0.9°F |
| Offset Calibration | 1 point |
| Calibration Range | Reading ±10°C/°F |
| Other Specifications | |
| Temperature Compensation | 0 to 100°C / 32 to 212°F, manual or automatic |
| Hold Function | Manual / Auto-read measurement endpoint |
| Stability Criteria | Low / High |
| Calibration Due Alarm | 1 to 31 days or off |
| Auto-Power Off | 10 / 20 / 30 minutes after last key pressed |
| Memory | Stores up to 500 data sets |
| Output | USB communication interface |
| Connector | BNC, 6-pin mini-DIN, 3.5 mm jack socket |
| Display | Custom LCD (80 × 60 mm) |
| Power Supply | 3 × 1.5V AA batteries or 5V DC power adapter |
| Battery Life | Approximately 150 hours without backlight |
| Environmental Conditions | 0 to 50°C / 32 to 122°F, relative humidity < 80% |
| Dimensions | 170 × 85 × 30 mm |
| Weight | 300 g |
