Ultimate Handheld for Consistent Color Control

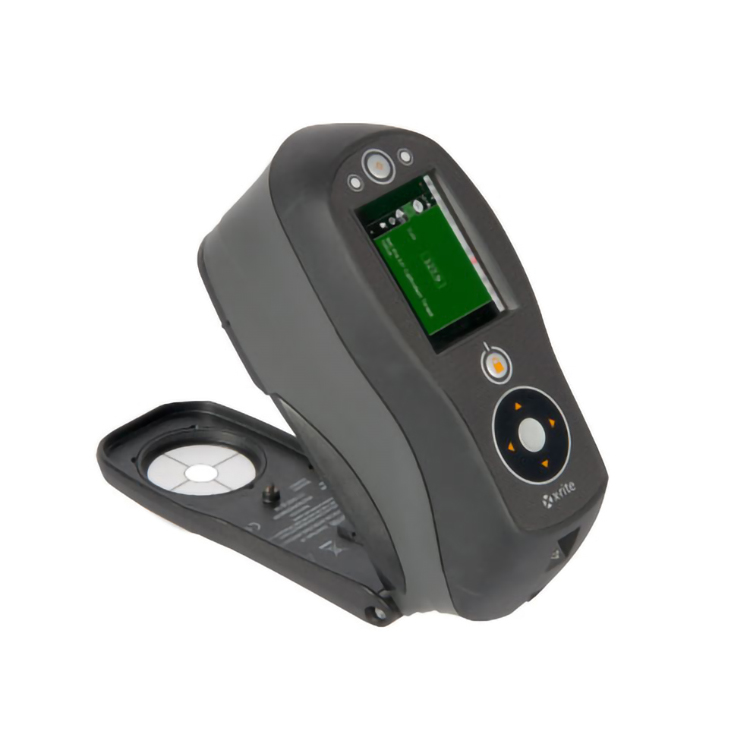

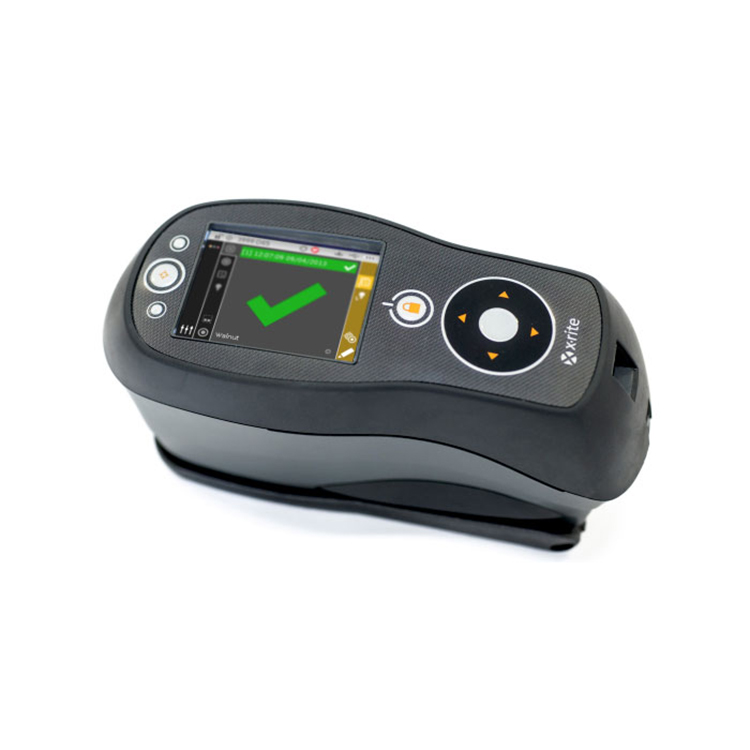

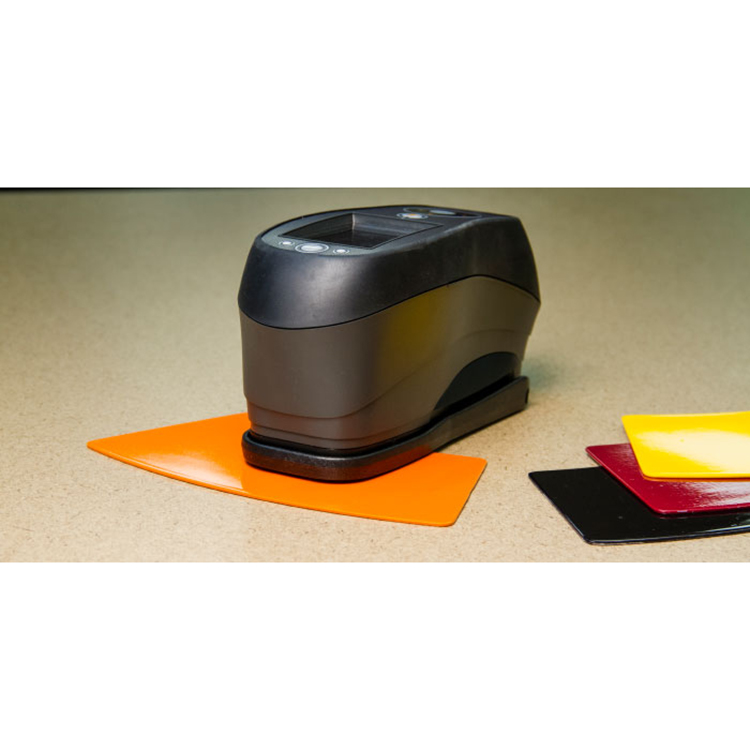

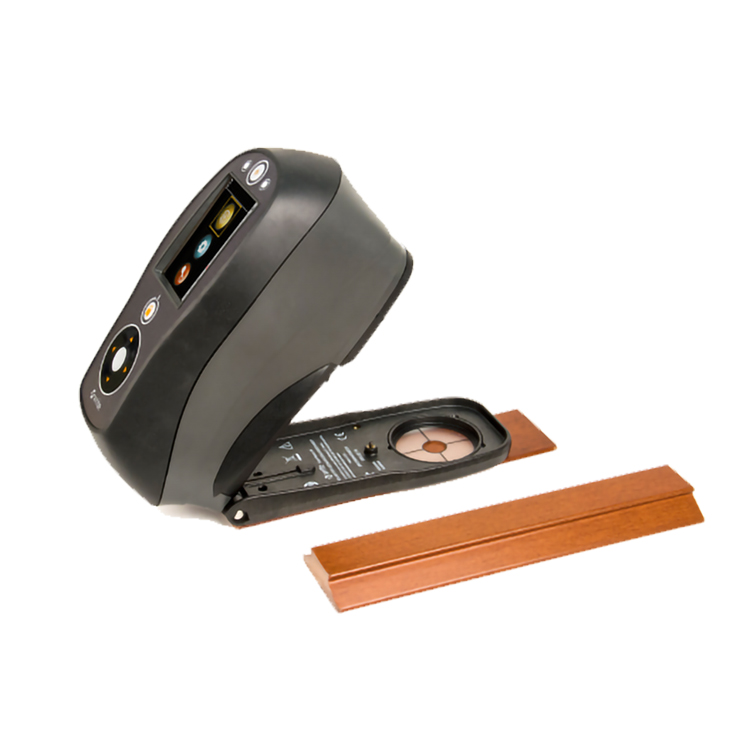

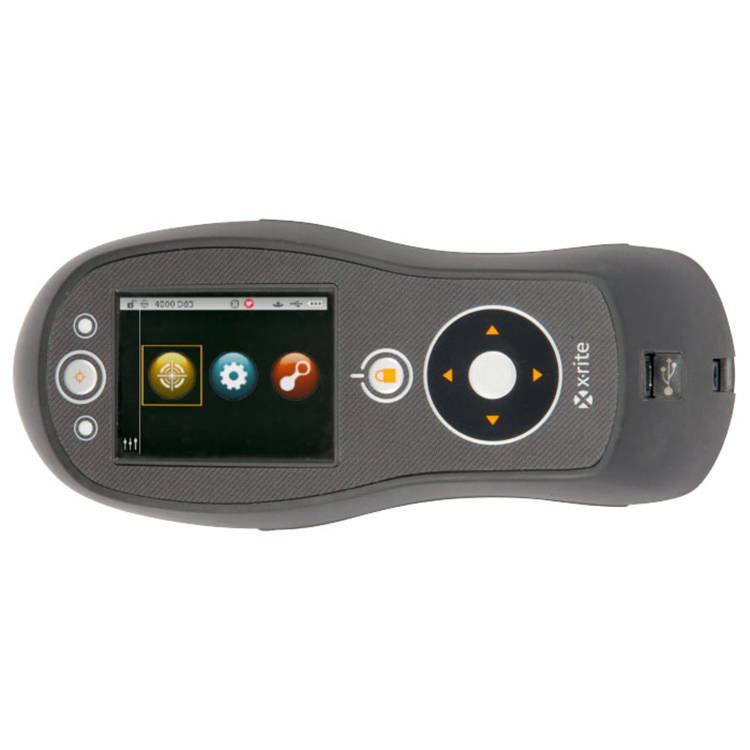

X-Rite’s most precise and accurate handheld sphere spectrophotometer, the Ci64 is available in multiple configurations with simultaneous SPIN/SPEX, correlated gloss, and a UV option to accurately measure uneven surfaces on a variety of products and packaging types.
Confidently Measure Optical Brightening Agents
With the Ci64, users have flexibility of aperture sizes and the option to add UV LED illumination for accurate color measurement of plastics, textiles and papers that contain optical brightening agents.
Bring Consistency to Measurement Processes
With a Graphical Jobs™ interface and configurable menus, Ci64 users can understand measurement procedures and view data directly from the device. It ensures reliable data collection and statistical process control for consistency across shifts, production lines, and manufacturing facilities.
Simultaneous SPIN/SPEX for Gloss Assessment
Immediately identify variances in color and gloss to ensure accurate color readings or verify visual inspection
Dual Spot Switchable Medium and Small Apertures (4 and 8, or 14mm*)
Provides greater flexibility to measure a wider variety of sample sizes
Software Compatible
Integrates with X-Rite's formulation and quality control software for an end-to-end color solution
Specifications
| Battery | Li-ion |
| Battery Life | 1000 measurements (non-UV) @ 10 sec intervals |
| Calibration | White, Zero, UV* |
| Color Differences | [√/X], Δecmc, Δlab, ΔE00, Δreflectance, ΔE94, ΔXYZ, ΔL*a*b*, ΔYxy, , ΔL*C*h°, ΔL*u*v*, Verbal Difference |
| Color Spaces | Lab, L*a*b*, Reflectance, L*C*h°, Munsell Notation, XYZ, Yxy, L*u*v* |
| Communication Interface | USB 2.0, Bluetooth* |
| Dimensions (length, width, height) | 21.3 cm 9.1 cm 10.9 cm |
| Embedded NetProfiler Support | Yes |
| Humidity | 5% to 85%, non-condensing |
| Illuminants | A, C, D50, D65, F2, F7, F11 & F12 |
| Illumination Spot Size | 20mm or 14mm and 6.5mm |
| Import/Export Format | CSV |
| Instrument Display | Backlit Color Graphic LCD |
| Inter-Instrument Agreement | 0.13 ΔE*ab avg. (8mm) |
| Lamp Life | Approx. 500,000 measurements |
| Languages Supported | English, German, French, Spanish, Italian, Portuguese, Chinese Simplified, Chinese Traditional, Korean, and Japanese |
| Light Source | Gas-filled tungsten lamp + UV LEDs* |
| Measurement Cycle Time | ≈ 2 seconds |
| Measurement Geometry | d/8° |
| Measurement Spot | 14mm or 8mm and 4mm |
| Measurement Time | ≈ 2 seconds |
| NetProfiler Support | Embedded |
| Observers | 2° & 10° |
| Operating Temperature Range | 50° to 104°F (10° to 40°C) |
| Package Dimensions (length, width, height) | 51cm, 20cm, 41cm |
| PantoneLIVE Support | Via software |
| Pass / Fail | Yes |
| Photometric Range | 0 to 200% |
| Photometric Resolution | 0.01% |
| Reflectance Aperture(s) | 1 or dual |
| Sample/Measurement | 4000 |
| Sample Preview | Targeting window |
| Shipped Weight | 7kg |
| Short Term Repeatability - White | .04 ΔE*ab on white ceramic |
| Software Development Kit | XDS4 |
| Spectral Analyzer | Blue-enhanced silicon photodiodes |
| Spectral Interval | 10nm |
| Spectral Range | 400nm-700nm |
| Spectral Reporting | 10nm |
| Standard Indices | [√/X], YI1925, WI Taube, ΔWI73, Reflectance, WI98, MI, Δreflectance, ΔWI Berger, WI73, MI6172, ΔYI98, ΔWI Hunter, Gray Scale, WI Berger, Gloss, ΔYI73, ΔWI Stensby, YI98, WI Hunter, ΔYI1925, ΔWI Taube, YI73, WI Stensby, ΔWI98, Averging, 555 Shade Sort |
| Standards | 1000 |
| Storage Temperature Range | -4° to 122°F (-20° to 50°C) |
| Transform Support | Embedded |
| Voltage | 100-240VAC 50/60Hz, 12VDC @ 2.5A |
| Warranty | 12 months |
| Weight | 1.06 kg |
