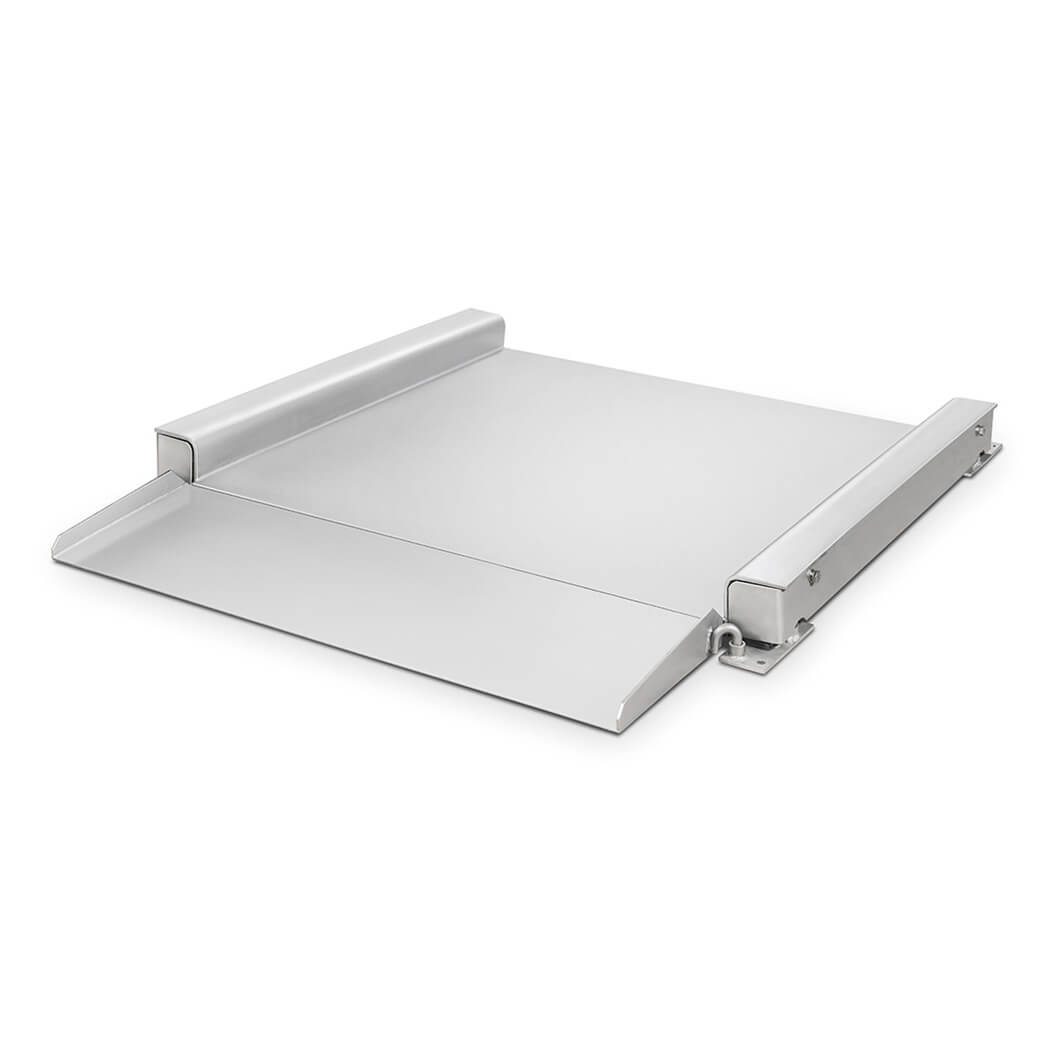

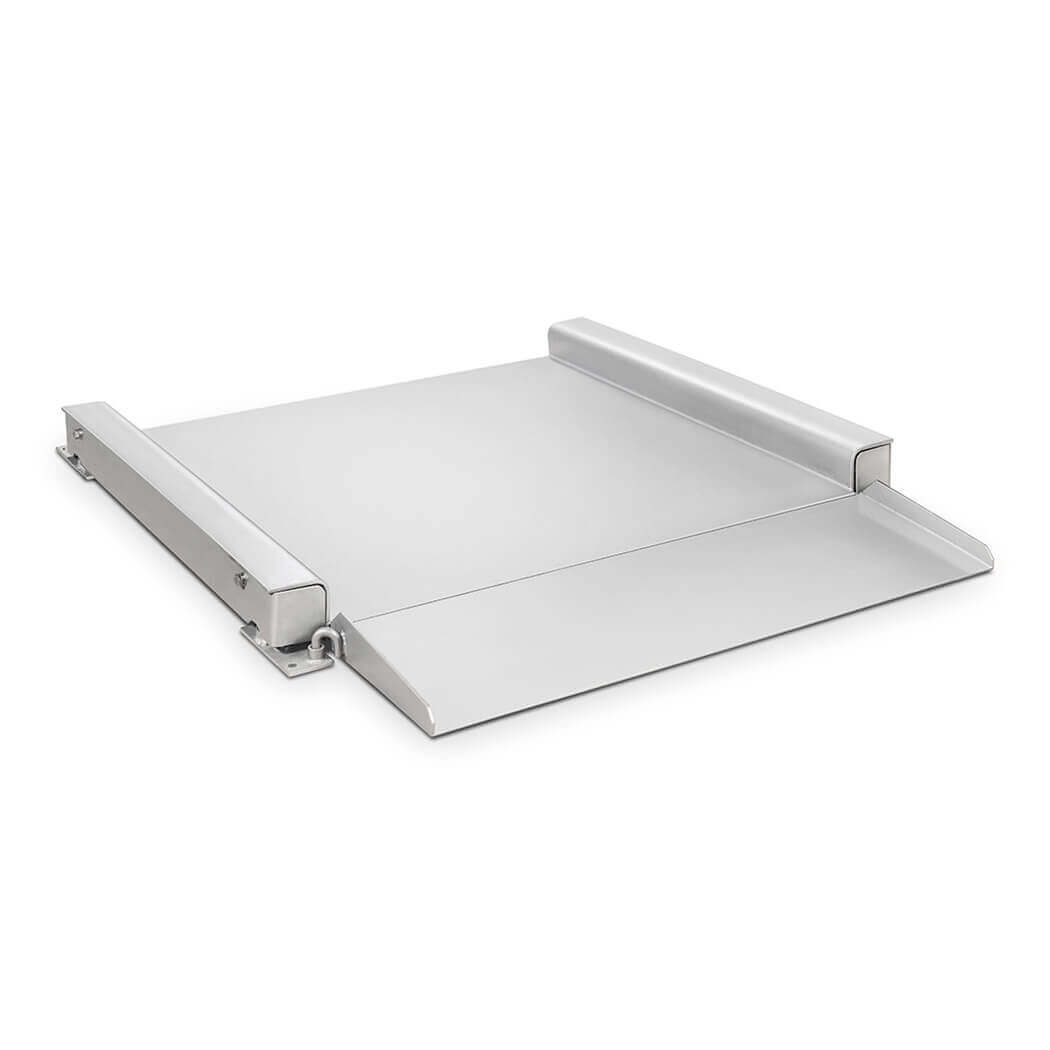

The Defender 5000 Series Stainless Steel Low Profile Platform combines durable construction and an ultra-low height. Featuring a stainless steel platform, built-in ramp, four IP68 stainless steel load cells (with adjustable feet), the ultra-low design simplifies the job of moving goods on and off the platform.
Applications
N/A
Display
N/A
Operation
N/A
Communication
N/A
Construction

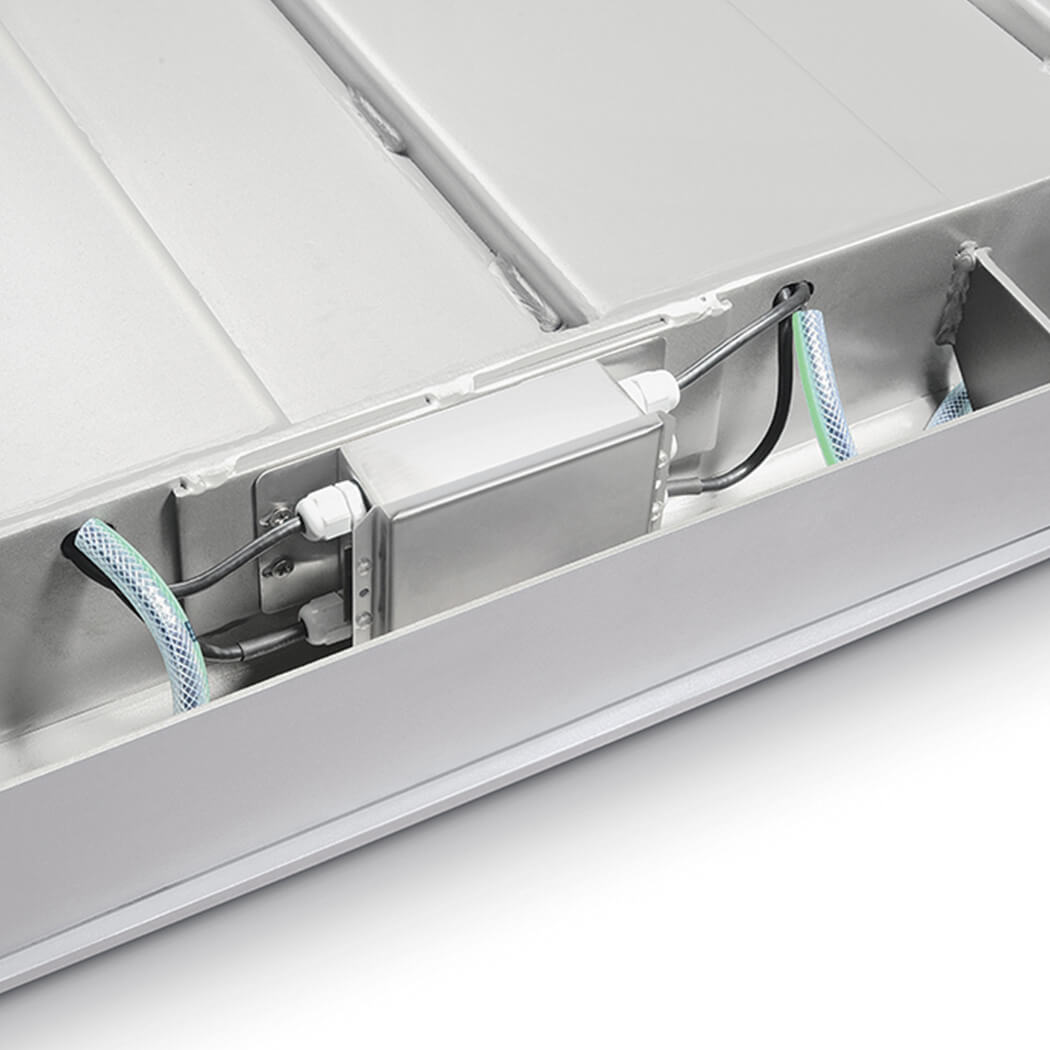

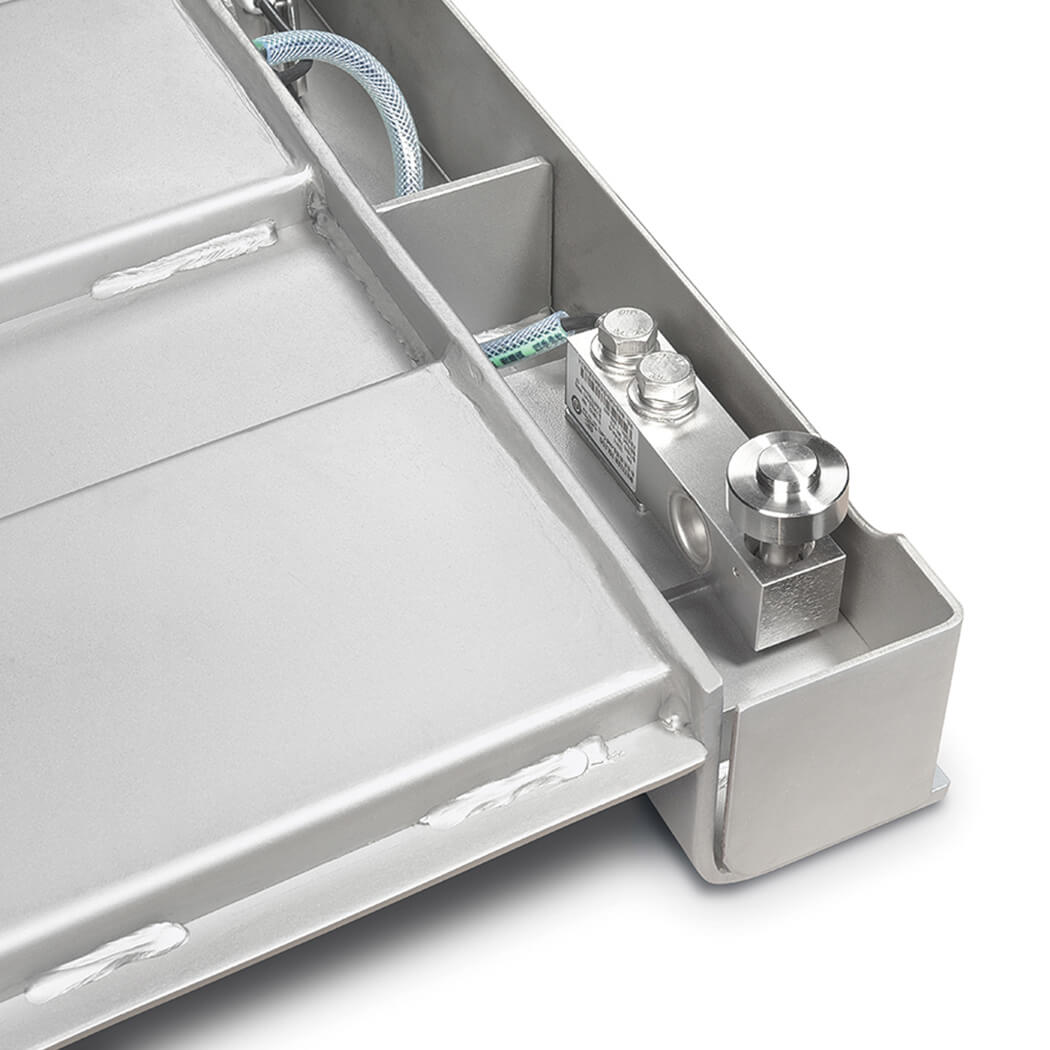

Stainless steel platform, IP67 stainless steel junction box, (4) OIML R60 IP68 stainless steel load cell and a front access stainless steel ramp
Design Features
150% capacity overload protection, painted and stainless steel floor stands (available as accessories)
DEFENDER™ 5000 WASHDOWN LOW PROFILE FLOOR PLATFORMS MODELS
| MODELS | DFD600WR | DFD1500WL |
| Maximum Capacity | 600 kg | 1,500 kg |
| Readability | 0.2 kg | 0.5 kg |
| Readability (Certified) | 0.2 kg | 0.5 kg |
| Platform Size | 1,000 mm x 1,000 mm | 1,250 mm x 1,250 mm |
| Protection Rating | IP67 | IP67 |
| Legal for Trade | EC Type Approvable | EC Type Approvable |
| Dimensions | 1,300 mm x 114 mm x 1,186 mm (LxHxW) | 1,550 mm x 114 mm x 1,436 mm (LxHxW) |
| Net Weight | 136 kg | 195 kg |
| Platform Construction | Stainless Steel | Stainless Steel |
| Working Environment | -10°C – 40°C, 85%RH, non-condensing | -10°C – 40°C, 85%RH, non-condensing |
